| AD7706BRUZ | |
|---|---|
| Part Number | AD7706BRUZ |
| Manufacturer | Analog Devices Inc. |
| Description | IC ADC 16BIT SIGMA-DELTA 16TSSOP |
| Quantity Available | 2559 pcs new original in stock. Request Stock & Quotation |
| Datasheets | AD7706BRUZ.pdf |
| Download | AD7706BRUZ Details PDF |
| AD7706BRUZ Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of AD7706BRUZ | |||
|---|---|---|---|
| Manufacturer Part Number | AD7706BRUZ | Category | Integrated Circuits (ICs) |
| Manufacturer | Analog Devices Inc. | Description | IC ADC 16BIT SIGMA-DELTA 16TSSOP |

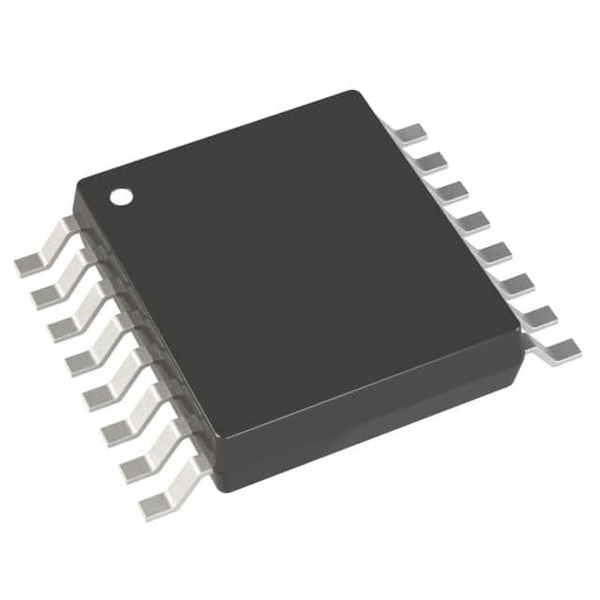

| Package / Case | 16-TSSOP | Quantity Available | 2559 pcs |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V | Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Supplier Device Package | 16-TSSOP | Series | - |
| Sampling Rate (Per Second) | 500 | Reference Type | External |
| Ratio - S/H:ADC | - | Product Status | Active |
| Package / Case | 16-TSSOP (0.173', 4.40mm Width) | Package | Tube |
| Operating Temperature | -40°C ~ 85°C | Number of Inputs | 3 |
| Number of Bits | 16 | Number of A/D Converters | 1 |
| Mounting Type | Surface Mount | Input Type | Pseudo-Differential |
| Features | PGA | Data Interface | SPI, DSP |
| Configuration | MUX-PGA-ADC | Base Product Number | AD7706 |
| Architecture | Sigma-Delta | ||
| Download | AD7706BRUZ PDF - DE.pdf | ||
Product Model
AD7706BRUZ
Introduction
High precision 16-bit Analog to Digital Converter
Brand and Manufacturer
Analog Devices
Features
16-bit resolution, Programmable gain amplifier (PGA), Three channel input, Pseudo-differential input, Low power consumption
Product Performance
500 samples per second, High accuracy and linearity, Minimal cross-channel interference
Technical Specifications
Sigma-Delta architecture, External reference voltage, Serial peripheral interface (SPI)
Dimensions, Shape, and Packaging
16-TSSOP package, Tube packaging, 4.40mm package width
Quality and Reliability
Operational temperature range from -40°C to 85°C, High MTBF
Product Advantages
Flexible voltage supply range, Robust temperature performance, Precision data acquisition
Product Competitiveness
Ideal for battery-powered instruments, Competitive in high-precision markets, Suitable for industrial control systems
Compatibility
Compatible with SPI and DSP interfaces, Utilizes standard serial communication
Standard Certification and Compliance
RoHS compliant, Industry standard certification
Lifespan and Sustainability
Long-lasting performance, Suitable for long-term deployments
Actual Application Fields
Data acquisition systems, Medical instrumentation, Industrial control, Battery-powered devices
Email us: Info@Ariat-Tech.com or RFQ AD7706BRUZ Online.
