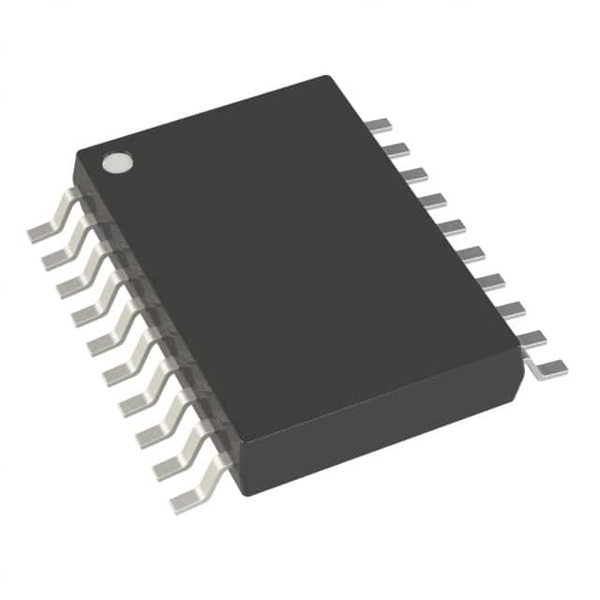

| AD5254BRUZ100 | |
|---|---|
| Part Number | AD5254BRUZ100 |
| Manufacturer | Analog Devices Inc. |
| Description | IC DGT POT 100KOHM 256TP 20TSSOP |
| Quantity Available | 1282 pcs new original in stock. Request Stock & Quotation |
| Datasheets | 1.AD5254BRUZ100.pdf2.AD5254BRUZ100.pdf |
| Download | AD5254BRUZ100 Details PDF |
| AD5254BRUZ100 Price |
Request Price & Lead Time Online or Email us: Info@ariat-tech.com |
| Technical Information of AD5254BRUZ100 | |||
|---|---|---|---|
| Manufacturer Part Number | AD5254BRUZ100 | Category | Integrated Circuits (ICs) |
| Manufacturer | Analog Devices Inc. | Description | IC DGT POT 100KOHM 256TP 20TSSOP |
| Package / Case | 20-TSSOP | Quantity Available | 1282 pcs |
| Voltage - Supply | 2.7V ~ 5.5V, ±2.25V ~ 2.75V | Tolerance | ±20% |
| Temperature Coefficient (Typ) | 650ppm/°C | Taper | Linear |
| Supplier Device Package | 20-TSSOP | Series | - |
| Resistance - Wiper (Ohms) (Typ) | 200 | Resistance (Ohms) | 100k |
| Product Status | Active | Package / Case | 20-TSSOP (0.173', 4.40mm Width) |
| Package | Tube | Operating Temperature | -40°C ~ 105°C |
| Number of Taps | 256 | Number of Circuits | 4 |
| Mounting Type | Surface Mount | Memory Type | Non-Volatile |
| Interface | I²C | Features | Selectable Address |
| Configuration | Potentiometer | Base Product Number | AD5254 |
| Download | AD5254BRUZ100 PDF - DE.pdf | ||
Product Model
AD5254BRUZ100
Introduction
Digital Potentiometer Integrated Circuit for Data Acquisition Systems
Brand and Manufacturer
Analog Devices
Features
Four independently programmable potentiometers
256-position linear taper
Non-volatile memory retains settings
Selectable I2C address
Operating Temperature: -40°C ~ 105°C
Product Performance
Linear resistance change per step
Temporal stability and minimal wiper resistance (200 Ohms typical)
Robust digital interface (I2C)
High temperature coefficient performance (650ppm/°C)
Technical Specifications
Resistance: 100k Ohms
Number of Taps: 256
Voltage Supply Range: 2.7V ~ 5.5V, ±2.25V ~ 2.75V
Tolerance: ±20%
Memory Type: Non-Volatile
Dimensions, Shape, and Packaging
20-TSSOP package
Width: 4.40mm
Supplied in tube packaging
Quality and Reliability
Industrial quality and reliability standards
Extended operating temperature range for demanding environments
Product Advantages
Multi-channel configuration saves space and reduces complexity
Non-volatile storage of wiper positions ensures device remembers last position after power is cycled
Product Competitiveness
Competitive analog performance with digital control
Compatibility
I2C bus interface compatible with many microcontrollers and processors
Standard Certification and Compliance
Meets industry standards for electronic components (specific standards may need to be verified)
Lifespan and Sustainability
Designed for durability and long operational life
Sustainable design following RoHS compliance
Actual Application Fields
Consumer Electronics
Automated industrial systems
Automotive industry
Communication equipment
Instrumentation and test equipment
Email us: Info@Ariat-Tech.com or RFQ AD5254BRUZ100 Online.
